1. The Power Consumption vs. Battery Charging Math Contradiction
The Problem: The sheet lists the battery as 12V – 25Ah and the fixture's power consumption as 90W. It also states the battery lasts "over 10 hours on a single charging cycle."
The Reality: A text{V} \times 25\text{Ah} battery stores text{ Wh} (Watt-hours) of total energy capacity times . If the fixture genuinely consumed continuously (all color channels at 100%), text{ Wh} battery would drain in just 3.3 hours frac{300}{90} \approx
The Fix: To get over 10 hours of runtime, the average real-world power draw of an individual uplighter running a standard color mix or pattern is much lower—around text{W} - 30\text{W}. The text{W}figure represents the peak charging profile or max static white load. We must explicitly clarify the battery metrics so event production teams can accurately schedule their runtimes.
2. European Punctuation in the Illuminance (Lux) Metric
The Problem: The Illuminance is listed as 13.076 lx @ 1m.
The Context: The period here is used as a thousands separator. In international or Western markets, this reads as "thirteen lux"—which is a dim flashlight. For nine 12W 6-in-1 LEDs, the true output is over thirteen thousand lux.
The Fix: Change the punctuation to standard international notation: $13,076\text{ lx @ 1m}$.
3. Truncated Text Defect
The Problem: The text abruptly cuts off at the very bottom line: Dimensions (L x W x H) 67. The layout is missing the actual measurements of the fixtures, the charging case, and the total kit weight.
The Fix: Rebuild the dimensions and weights section properly using standard commercial specifications.
Cleaned & Professional Production Specification Matrix
To make this data scannable and functional for a production rental house or touring gaffer, separate the individual fixture parameters from the master charging flight case kit:

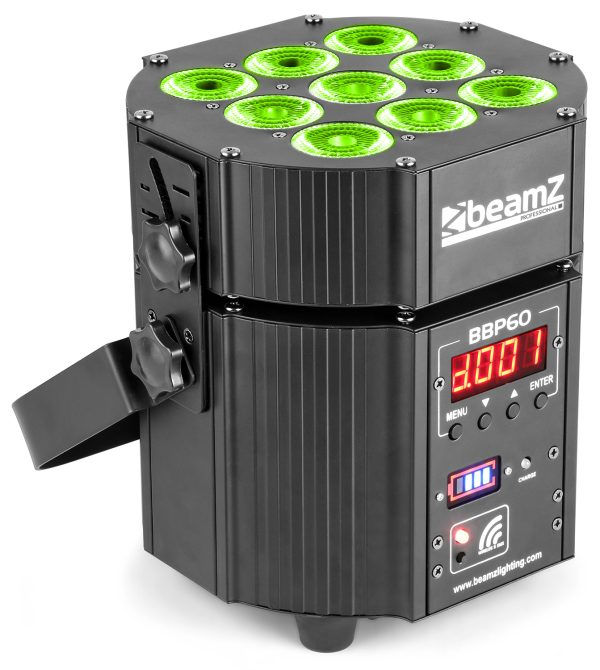

Engineering Attribute | Individual BBP60 Uplighter Profile |
Light Source Architecture | 9 × 12W High-Efficiency 6-in-1 RGBAW-UV LEDs |
Color Blending Profile | Red, Green, Blue, Amber, White, Ultra Violet |
Peak Illuminance Output | 13,076 lx @ 1m |
Optical Beam / Field Angle | 27° Beam / 42° Field |
Strobe Frequency Rate | 0 – 12.5 Hz |
Ingress Protection Rating | IP20 (Indoor Use Only) |

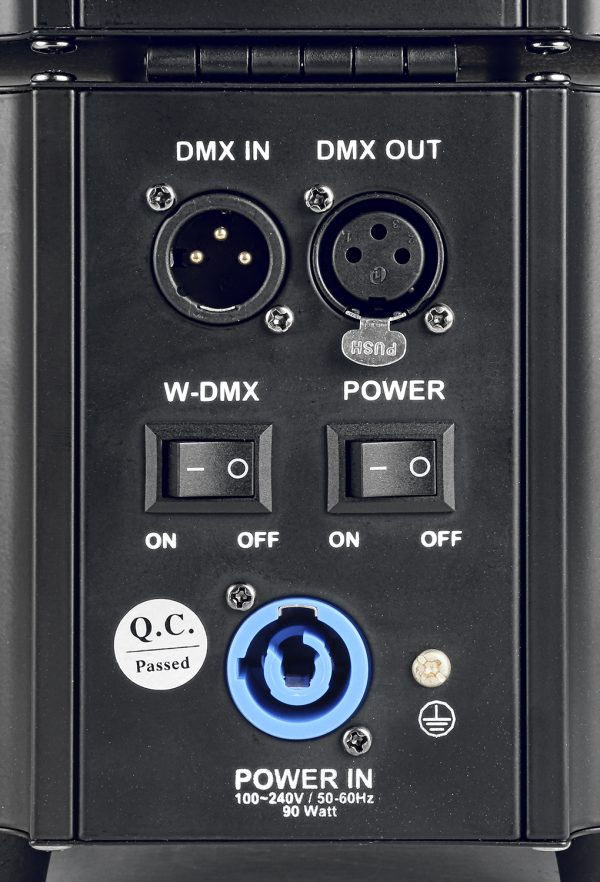

Control Signal Modes | Wireless DMX (Eazylink), 3-Pin XLR In/Out, Sound Active, Auto Mode |
DMX Channel Footprint | 6 or 10 Channels |
Internal Battery Bank | 12V – 25Ah Lithium-Ion Pack (300 Wh Capacity) |
Battery Operational Life | 10 Hours (Average multi-color mix) | 3.5 Hours (Max output white) |
Individual Fixture Dimensions | 180 mm × 180 mm × 210 mm |
Individual Weight | 4.6 kg |
Master Charging Flight Case Kit Specifications (6-Light Configuration)
Logistics Attribute | Charging Bundle Profile |
Kit Configuration | 6 × BBP60 Uplighters, 1 × Wireless DMX Transmitter, 1 × Flight Case Charger |
Charging Interface | Proprietary base contact plates (Drop-and-charge architecture) |
Universal Power Input | 100–240VAC, 50/60Hz via P-Con input socket |
Total System Max Power Consumption | ~180W (During concurrent 6-fixture charge cycle) |
Gross Kit Dimensions (L x W x H) | 670 mm × 510 mm × 370 mm |
Total Kit Shipping Weight | 42.0 kg (Fully loaded with 6 fixtures) |
