1. The Absurd Weight Calculation (The 120 lb Single Tube)

• The Problem: The sheet lists the physical dimensions as times 65 \times 1440\text{ mm} (a standard, slim 4-foot light tube) but states the Weight (kg) is 55.75 kg.

• The Reality: 55.75 kg is over 120 pounds. If a single 4-foot plastic and aluminum LED tube weighed 120 lbs, it would crack light stands, snap rigging lines, and require a two-person crew just to lift into place.

• The Fix: The author accidentally listed the weight of the entire 8-light flight case bundle under the individual tube profile. A single 4-foot LED tube typically weighs between 1.2 kg and 1.5 kg.

  • Single Tube Weight: 1.45 kg

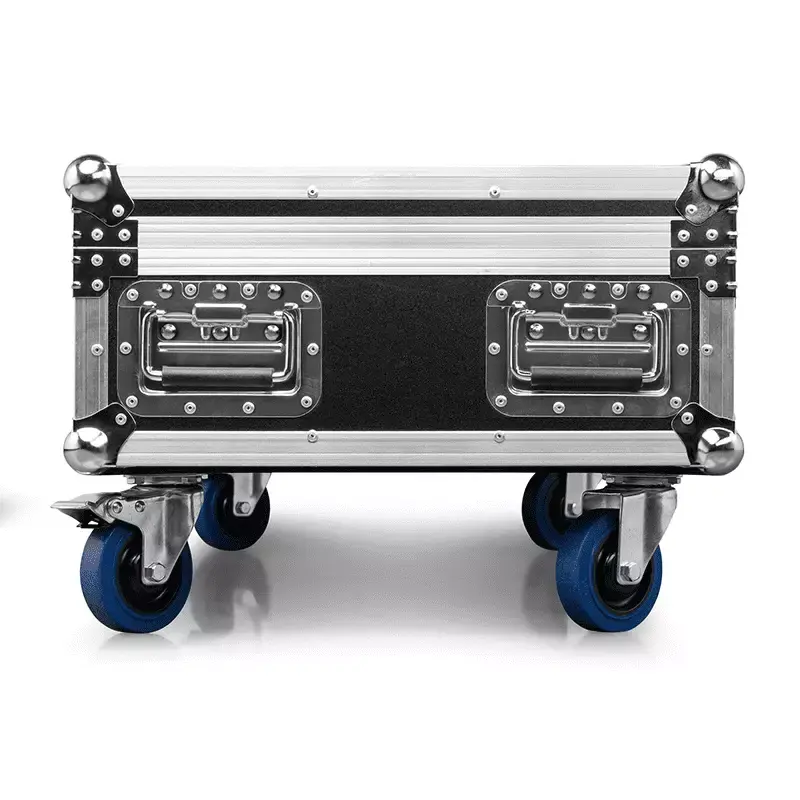

  • Complete 8-Light Charging Flight Case Kit Weight: 55.75 kg

2. Physically Impossible Wireless DMX Range

• The Problem: Under Wireless, the range is listed as 15m indoor, 25m outdoor.

• The Reality: A maximum range of 25 meters (about 80 feet) outdoors is incredibly weak for professional Wireless DMX (WDMX) or Eazylink protocols. Professional lighting networks require ranges of 150 to 300+ meters line-of-sight on film sets. If a production gaffer puts a tube up on a high building or at the far end of a music stage, 25 meters would cause the signal to drop instantly.

• The Fix: Upgrade the wireless metric to match industry-standard transmitter thresholds: Up to 150m (Indoor) / 300m (Outdoor Line-of-Sight).

3. Conflicting Color Engine Terminology

• The Problem: The introduction lists the light as RGBW (CW+WW). The features list it as 5-in-1 LED and RGB-CW/WW.

• The Terminology Correction: RGBW means 4 channels (Red, Green, Blue, White). RGB-CW/WW or a "5-in-1 LED" means 5 distinct diode types (Red, Green, Blue, Cool White, Warm White). The industry standard term for a 5-diode color chip is RGBCW or RGBWW.

• The Fix: Eliminate the "RGBW" reference entirely to avoid control desk patching errors, and strictly call it an RGBWW or 5-in-1 RGBCW color engine.

Cleaned & Professional Cinema Production Specification Matrix

To ensure a rental house, gaffer, or director of photography can trust this data, separate the individual tube physicals from the heavy master charging kit footprint:

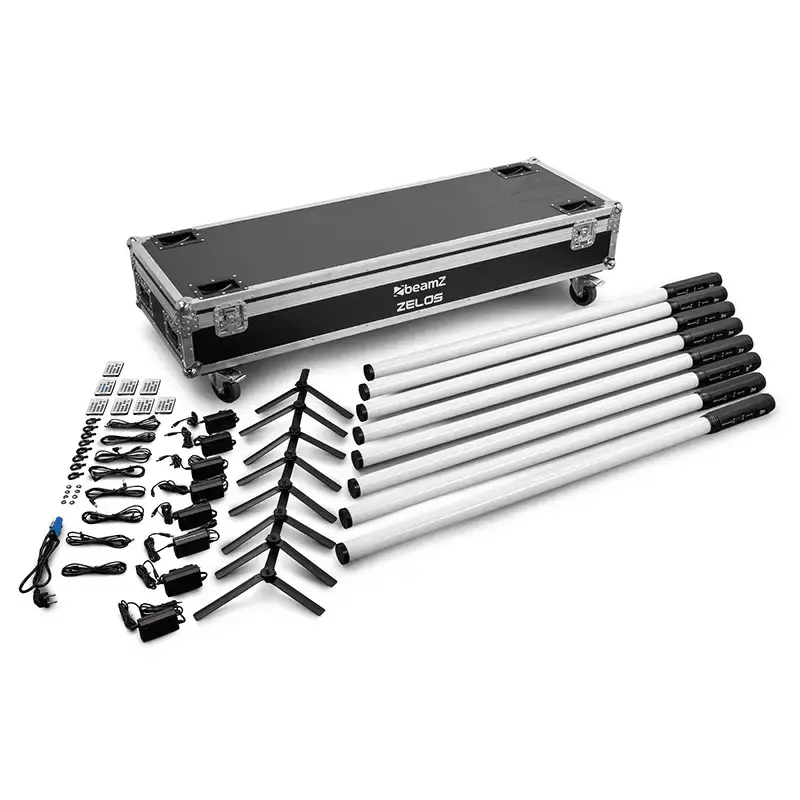

Master Production Kit Specifications (8-Light Configuration)
