1. The 20-Litre Fluid Consumption Math Trap

• The Problem: The sheet lists the Tank capacity as 20l and the Maximum Flow Rate as 400 ml per minute.

• The Math Reality: If the machine is running at full blast during a simulated "blizzard" effect, it consumes 400 ml of fluid per minute. Dividing the 20,000 ml reservoir by 400 ml reveals that the tank will run dry in exactly 50 minutes of continuous operation (\frac{20000}{400} ).

• The Fix: While 50 minutes is an excellent runtime for a stage effect, a gaffer or stage manager planning a long theatrical production or holiday event needs to know this exact breakdown so they can stock enough fluid barrels. Explicitly add a Maximum Continuous Runtime per Tank metric to the specifications.

2. Logistical Weight vs. Fluid Mass Disconnect

• The Problem: The sheet lists the Weight flatly as 30.9kg.

• The Real-World Context: 30.9 kg (~68 lbs) is the weight of the machine and the flight case completely empty. Water-based snow fluid weighs exactly 1 kg per litre. When you fill the massive 20-litre internal tank to maximum capacity, you are adding an extra 20 kg (44 lbs) of dead weight to the fixture.

• The Fix: To prevent tail-lift or ramp injuries during load-in, clearly split this spec:

  • Net Weight (Empty): 30.9 kg (68.1 lbs)

  • Gross Weight (Fully Loaded): 50.9 kg (112.2 lbs)

3. Missing Volumetric Air-Line Loss Context

• The Problem: The sheet proudly mentions the included 10m hose, but fails to explain the performance impact of that length.

• The Engineering Nuance: Pushing water-based foam solution through a 10-meter (32.8 ft) tube requires immense, sustained air pressure from the internal compressor. Curving, kinking, or coiling the hose in the truss will create fluid pooling and drop the snowflake throw distance significantly.

• The Fix: Add an operational note indicating the hose must be routed with wide, gradual bends for peak performance.

Cleaned & Professional Stage Effects Master Specification Matrix

To present this accurately for theater production companies, theme parks, and rental equipment listings, structure the engineering data into this layout:

Core Mechanical & Operational Features

• Integrated Flight Case Architecture: The entire pump, compressor, and electronics matrix are permanently shock-mounted inside an industrial flight case. The removable split-lid design allows operators to manage fluid levels and DMX lines while keeping the main chassis protected from outdoor elements.

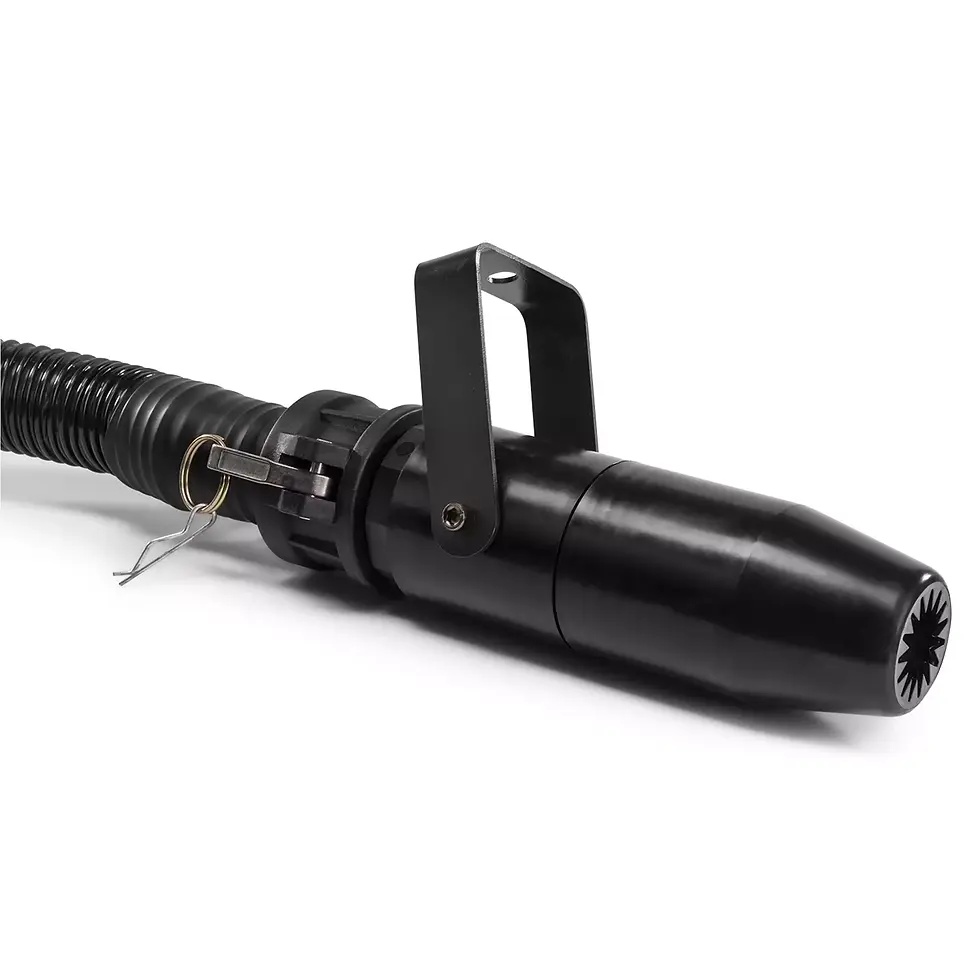

• Decentralized Nozzle Rigging: By separating the heavy compressor motor from the emission nozzle via a 10-meter hose, production crews can keep the heavy, noisy main case on the ground while flying the lightweight nozzle high up in the lighting truss.

• Residue-Free Foam Technology: Engineered to run on specialized high-evaporation fluid. The flakes create an immediate visual layer on stage but break down into air without leaving slippery, oily polymer footprints that pose a hazard to actors or dancers.

Production Setup & Safety Warning
