1. The Absurd "Split Dimension" Error (A Physical Impossibility)

• The Problem: Under Dimensions, the sheet lists two completely different sizes for a single speaker box: a "tweeter module" \times 782 \times 420\text{ mm} and a "woofer module" \times 782 \times 760\text{ mm}

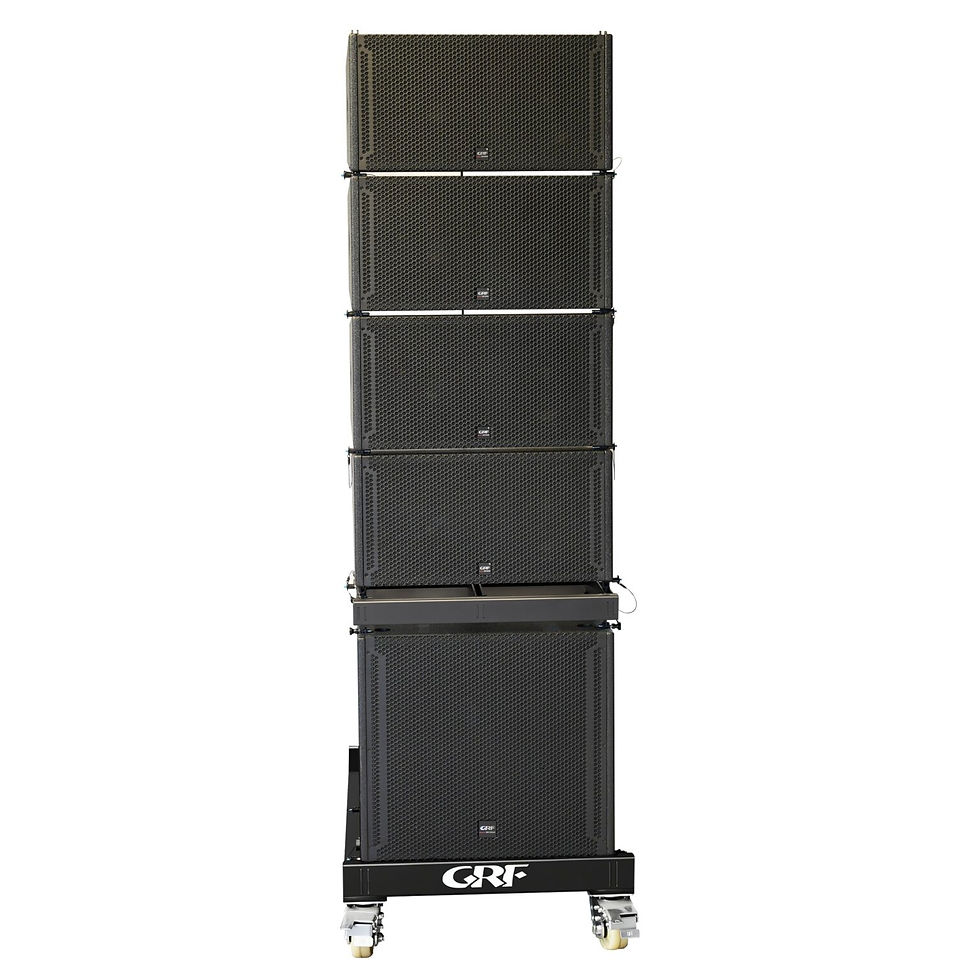

• The Reality: A dual 10-inch line array speaker is a single, unified cabinet containing both the woofers and the high-frequency compression drivers (tweeters) mapped behind a unified wave-guide. It does not ship as two separate, detached puzzle pieces of different depths (text{ mm}text{ mm. If the woofer module is text{ mm}deep and the tweeter module is only text{ mm, they couldn't even be rigged together in an array fly-frame.

• The Fix: Consolidate this into a single, standard cabinet dimension footprint. A typical dual 10-inch line array enclosure measures roughly \text{ mm (H)} \times 780\text{ mm (W)} \times 420\text{ mm (D)}

2. Missing High-Frequency Driver Specs (The "Tweeter" Fluff)

• The Problem: The sheet repeatedly uses the word "tweeters."

• The Acoustic Reality: "Tweeters" are cheap, low-power components used in home hifi stereos or studio monitors. Professional, concert-grade line arrays never use basic tweeters. They use heavy-duty Neodymium High-Frequency (HF) Compression Drivers mated to a specialized, physical Waveguide that shapes the sound into a tight vertical ribbon so it can throw sound hundreds of feet.

• The Fix: Update the driver specification line to: High-Frequency: 2 × 1.4" or 2" Neodymium Compression Drivers (with linear plane wave-guide).

3. Vague Crossover and Wiring Architecture

• The Problem: The impedance is listed flatly as 8 Ω for a speaker containing four separate physical drivers.

• The Engineering Nuance: Professional line arrays are almost always Bi-Amped (meaning one amplifier channel drives the two 10-inch woofers at 8 Ohms, and a completely separate amplifier channel drives the high-frequency compression drivers at 8 or 16 Ohms). If this box uses an internal passive crossover network to run on a single cable, it must be explicitly stated.

• The Fix: Add a Wiring / Wiring Mode line to the specification table: Bi-amp (LF: 8 Ω / HF: 16 Ω) or Passive Switchable.

4. Fluff Application: "Studio Installations"

• The Problem: The sheet lists "Studio Installations and Recordings" under applications.

• The Acoustic Reality: A line array is a high-SPL (Sound Pressure Level) weapon meant to blast audio over immense crowds by coupling multiple cabinets together. Using a massive, mid-size concert line array cabinet inside a recording studio control room is acoustics madness—it would cause overwhelming phase cancellation and deafen the mix engineer.

• The Fix: Delete "Studio Installations" entirely. Replace it with Stadiums, Arena Side-fills, Outdoor Festivals, and Large Auditoriums.

Suggested Corrected Engineering Spec Table

Upgrade your layout to match professional sound reinforcement standards (like d&b, L-Acoustics, or JBL spec sheets):
