1. The 30A Electrical Trap

  • The Reality: The text mentions "significantly reducing overall power consumption on set," which is true relative to a traditional 4K HMI or 6K Tungsten. However, drawing a max input power of ~2900W means this fixture pulls up to 30A at low AC voltages (100–120V).

  • The Context: You cannot plug this into a standard household or office wall outlet \text{A or }20\text{A})without instantly tripping the breaker. It requires a dedicated industrial circuit or generator power.

2. The G-Mount Ecosystem Shift

  • The Reality: Mentioning the "innovative G-mount" sounds like a neat bonus feature, but it is actually a safety and structural requirement.

  • The Context: Because a 2600W COB LED produces extreme thermal heat, standard Bowens-mount modifiers would literally melt or warp. The G-mount includes electronic communication pins that allow the fixture to auto-detect the modifier and adjust the fan profile accordingly. Buyers must know their existing Bowens-mount inventory will not fit natively.

3. Rigging & Infrastructure Demands

  • The Reality: Describing it as a single "fixture" leaves out the split-component architecture.

  • The Context: The system uses a dual-component design to keep heat away from the electronics. The light body alone weighs 22 kg (48.5 lbs) and the controller ballast weighs another 13 kg (28.6 lbs). Rigging this safely requires a heavy-duty combo stand or a crank-up stand with a junior pin (\text{-}1/8\text{"}).

Master Technical Specifications

Metric

Professional Cinema Specification

Fixture Type

Ultra-High-Output COB LED Bi-Color Monolight

Pure Output Power

2600W stable across all color temperatures (2800K to 6500K)

Max Power Consumption

~2900W input power draw

Electrical Input

100V–240V AC ~50/60Hz (Max 30A draw)

Color Accuracy

CRI $\ge$ 96 | TLCI $$\g$ 96

Dimming Performance

0.1% to 100% stepless (Linear, S-Curve, Exponential, Logarithmic)

Accessory Mount

Proprietary Godox G-Mount (with electronic metadata pins)

Weather Resistance

IP54 Dust & Water Splash Resistant (Light Head & Controller)

Control Architecture

LumenRadio CRMX, DMX512 (RDM), Ethernet (Art-Net / sACN), Bluetooth App

Physical Weight

Light Head: 22 kg (48.5 lbs) | Controller Box: 13 kg (28.6 lbs)

Stand Mount Type

1-1/8" Junior Pin Stud

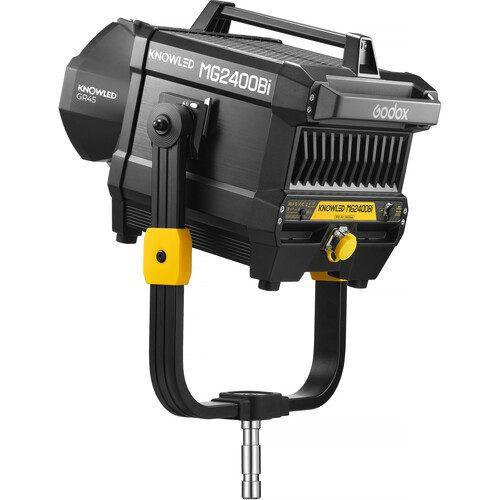

Godox KNOWLED MG2400Bi Bi-Colour LED Monolight

R 10 300,00Price
Quantity
